Capsule Filling Machine Working Principle: The Complete Buyer Guide (Checks + Troubleshooting)

In pharmaceutical and nutraceutical manufacturing, capsule filling must deliver repeatable dosing and reliable closure quality at production throughput. Fully automatic hard capsule filling machines achieve this by running a fixed station sequence—orientation, cap/body separation, metering, closing, and discharge—synchronized by turret timing and control logic.

This guide explains the capsule filling machine working principle at station level, so you can see what each module controls, what conditions destabilize the cycle, and which checks (weight trend, closure consistency, reject patterns) show the run is in control.

Capsule Filling Basics in 60 Seconds (For First-Time Buyers)

What a fully automatic capsule filler does

A fully automatic cycle repeats the same operations in the same order:

1. Rectify (orient) capsules

2. Separate cap and body

3. Meter and transfer the dose

4. Close and lock

5. Discharge and reject

“Stable performance” should mean the station cycle stays consistent over time—not only that the machine reaches a headline speed.

Quick context: manual vs semi-auto vs fully automatic

Manual systems suit trials and small batches; control is largely operator-driven. Semi-automatic machines automate parts of the flow but remain interrupted and less comparable to continuous station control. This article assumes fully automatic capsule filling machines: turret-based, continuous cycles, integrated sensing, and reject logic.

Key terms (used consistently later)

● Rectification: aligning capsules for correct entry.

● Cap/body separation: splitting using vacuum/air timing plus mechanical guidance.

● Dosing disc + tamping pins: forms a packed, repeatable metering volume before transfer.

● Dosator: uses a dosing tube/nozzle to pick up and transfer a powder charge.

● Locking integrity: consistency of cap–body engagement after closing.

● IPC: in-process checks (weight, closure, rejects) during the run.

Capsule Filling Machine Working Principle

A fully automatic capsule filler runs two flows in parallel: the capsule flow and the powder (fill) flow. When results drift, the root cause is typically separation timing, metering stability, or closing alignment—often triggered by capsule condition or powder behavior.

Capsule flow

Feed/rectify → separate → close → discharge/reject

● Rectification affects how consistently shells enter separation and dosing.

● Separation relies on mechanical support plus vacuum/air timing; partial splits and shell stress often reappear later as closing defects.

● Closing depends on alignment and cleanliness. Powder on the cap/body interface is a common cause of loose lock and leakage.

● Reject/discharge should show a stable pattern over time; a rising reject rate usually signals buildup or drift upstream.

Powder flow

Condition → meter → transfer
Powder can bridge, aerate, segregate, pick up static, and shift bulk density with humidity. The dosing station translates that behavior into a repeatable dose through one of two common architectures:

● Dosing disc + tamping pins: compact powder into repeatable plugs (“slugs”) inside dosing bores, then transfer a metered volume.

● Dosator: capture and transfer a powder charge via a dosing tube/nozzle.

Three control domains (a practical diagnosis frame)

1. Separation timing: vacuum level, air timing, mechanical alignment.

2. Metering stability: powder bed consistency, tamp depth or dosator settings, speed window.

3. Closing alignment/force: guides, cleanliness, shell condition, closing geometry.

Station-by-Station Walkthrough

Layouts vary by manufacturer, but the functional sequence is consistent. At each station, focus on three questions: what is the station trying to do, what variables control it, and what failure looks like.

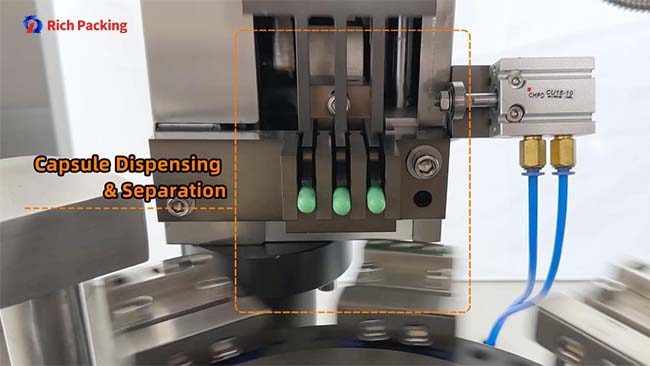

1) Feeding and rectification

Controls: hopper flow, guide geometry, capsule size consistency, cleanliness.
Typical symptoms: misfeeds, scuffing, intermittent jams.
Fast checks: steady flow (no bursts); inspect guides for wear and powder buildup.

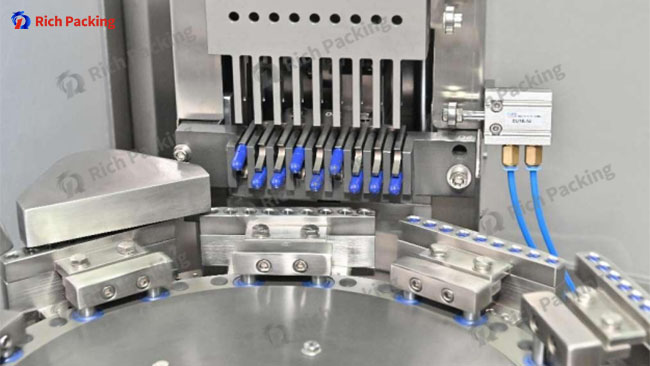

2) Cap/body separation

Controls: vacuum level, air timing, separation depth, turret speed, shell condition.
Typical symptoms: partial separation, cracked shells, caps not fully lifted.
Fast checks: validate clean splits at low speed, then ramp while watching shell damage and rejects.

3) Body positioning and dosing preparation

Controls: mechanical alignment, holding stability, residue control.
Typical symptoms: body lift/wobble, inconsistent entry, powder “puffing.”
Fast checks: confirm bodies seat consistently and do not shift under vibration.

4) Dosing with disc + tamping pins

Controls: powder bed height, tamp depth, scraper/transfer cleanliness, turret speed.
Typical symptoms: weight drift, underfill, bridging, gradual buildup.
Fast checks: stabilize powder bed first, then adjust tamp depth, then validate at target speed.

5) Dosing with dosator

Controls: fill depth, timing, powder conditioning, nozzle cleanliness.
Typical symptoms: charge inconsistency, smearing/buildup.
Fast checks: short-interval weights; inspect transfer surfaces for early residue.

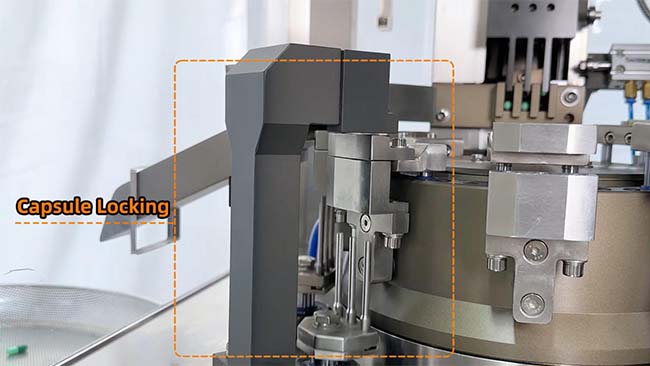

6) Closing and locking

Controls: guide alignment, closing force, station cleanliness, shell conditioning.
Typical symptoms: won’t close, loose lock, deformation, post-close leakage.
Fast checks: closure inspection on interval; if defects rise, re-check separation and interface contamination.

7) Ejection, discharge, and reject

Controls: reject thresholds, sensor stability, discharge handling.
Typical symptoms: false rejects, missed defects, scuffing at discharge, rejects that climb over time.
Fast checks: trend reject patterns; confirm discharge handling does not damage good capsules.

Table #1 — Station-by-Station Map

Dosing & Fill-Weight Control (The Core of Accuracy)

Fill-weight control is where the rotary capsule filling machine working principle becomes measurable: stable powder conditioning, repeatable metering, and clean transfer. Most systems meter a repeatable volume/charge; final weight shifts when bulk density shifts or transfer efficiency shifts.

Why weight varies

● Powder bed instability: inconsistent replenishment, bridging.

● Bulk density drift: aeration/vibration/humidity changes how powder packs.

● Segregation: blends separate, increasing variation (and content uniformity risk).

● Static and adhesion: powder sticks to dosing/transfer surfaces, causing slow drift.

Disc + tamping pins: stabilize in the right order

For disc/tamping designs, repeatability usually improves fastest in this sequence:

1. Powder bed height/consistency

2. Tamping depth (small steps, one variable at a time)

3. Transfer cleanliness (scrapers/contact surfaces)

4. Speed window validation (ramp after weights are stable)

Dosator: where it helps, and what to verify

A dosator can perform well for certain powders and operating windows, but it still depends on powder condition and clean transfer. If drift appears, confirm powder behavior and residue first, then adjust dosator parameters.

Demo checks that prove control (not just output)

● Weight trend (drift vs stable band)

● Start-up vs steady-state (first 10–20 minutes)

● Locking integrity checks

● Reject stability over time

IPC basics

Define sampling intervals, record results, and keep adjustments traceable. A simple cadence—more frequent at start-up, then steady—prevents most “surprises” later in the batch.

Running Stable at Speed: Yield, Dust, and Capsule Integrity

Higher speed reduces dwell time, so small instabilities show up faster as rejects and weight variation. In practice, qualification should focus on a stable speed window—the fastest speed that still holds weight and closure consistency over time.

What usually changes first as throughput rises

● Separation consistency decreases (partial splits and shell stress increase).

● Powder bed replenishment becomes less stable (variation increases).

● Closing becomes less forgiving of alignment and contamination.

If rejects jump when you raise speed, slow back down and confirm which control domain breaks first (separation, metering, or closing).

Dust and leakage: root causes and quick controls

Most dust/leakage originates from dosing transfer losses and powder contamination at the cap/body interface. Controls that commonly help:

● keep dosing/transfer surfaces clean (avoid gradual buildup)

● verify closing station cleanliness and guide alignment

● avoid overfill that prevents a clean lock

● add capsule polishing/dedusting when needed for downstream packaging or appearance

Shell conditioning (humidity and handling)

Hard capsule shells are sensitive to environment:

● too dry → brittle shells, cracking risk

● too humid → soft shells, deformation/loose lock risk
Stable conditioning near the line often improves locking integrity more than aggressive mechanical changes.

Troubleshooting + GMP Basics

This section is a practical layer for first-time lines: minimum discipline plus fast fault isolation.

Minimum compliance checklist (8 points)

1. line clearance

2. batch record: key settings + IPC results + adjustments

3. cleaning procedure + changeover checklist

4. cross-contamination controls (dust management)

5. calibration records for IPC tools (balances, gauges if referenced)

6. safety basics (guards/interlocks/E-stops)

7. deviation handling triggers and documentation

8. training records for operators/maintenance

FAT/SAT: what to document

● stable operation in an agreed speed window

● IPC plan + weight trend evidence

● closure checks and defect handling approach

● reject consistency over time

● realistic cleaning access/time

● wear parts/spares list + lead times

Table #2 — Troubleshooting Matrix

Conclusion

A fully automatic capsule filler is a station-timed cycle. When separation timing, metering stability, and closing alignment are controlled, fill weight and locking integrity become predictable and rejects stay stable. Used this way, the capsule filling machine working principle becomes a practical tool for evaluating equipment, qualifying a speed window, and isolating faults quickly.

FAQ

1. How does a fully automatic capsule filling machine work?
It repeats rectification → separation → metering/transfer → closing/locking → discharge/reject.

2. Dosing disc/tamping pins vs dosator—what’s the difference?
Disc/tamping meters a packed volume; dosator meters a charge via nozzle. The best choice depends on powder behavior and the stability window you need.

3. Why does weight drift after start-up?
Common causes are bulk density drift and residue buildup on dosing/transfer surfaces.

4. Why do capsules fail to close?
Most often alignment, contamination at interfaces, or shell condition, sometimes traced back to weak separation.

5. Can one machine run powder and pellets?
Often yes with the correct dosing configuration and validation of transfer/closure/reject performance.

6. What should I prioritize in a FAT?
Evidence of control: weight trend, closure checks, reject stability, and realistic cleaning/changeover demonstration.

7. What is a practical start-up IPC cadence?
Sample more frequently during the first 10–20 minutes, then move to a steady interval once weight and rejects stabilize.
